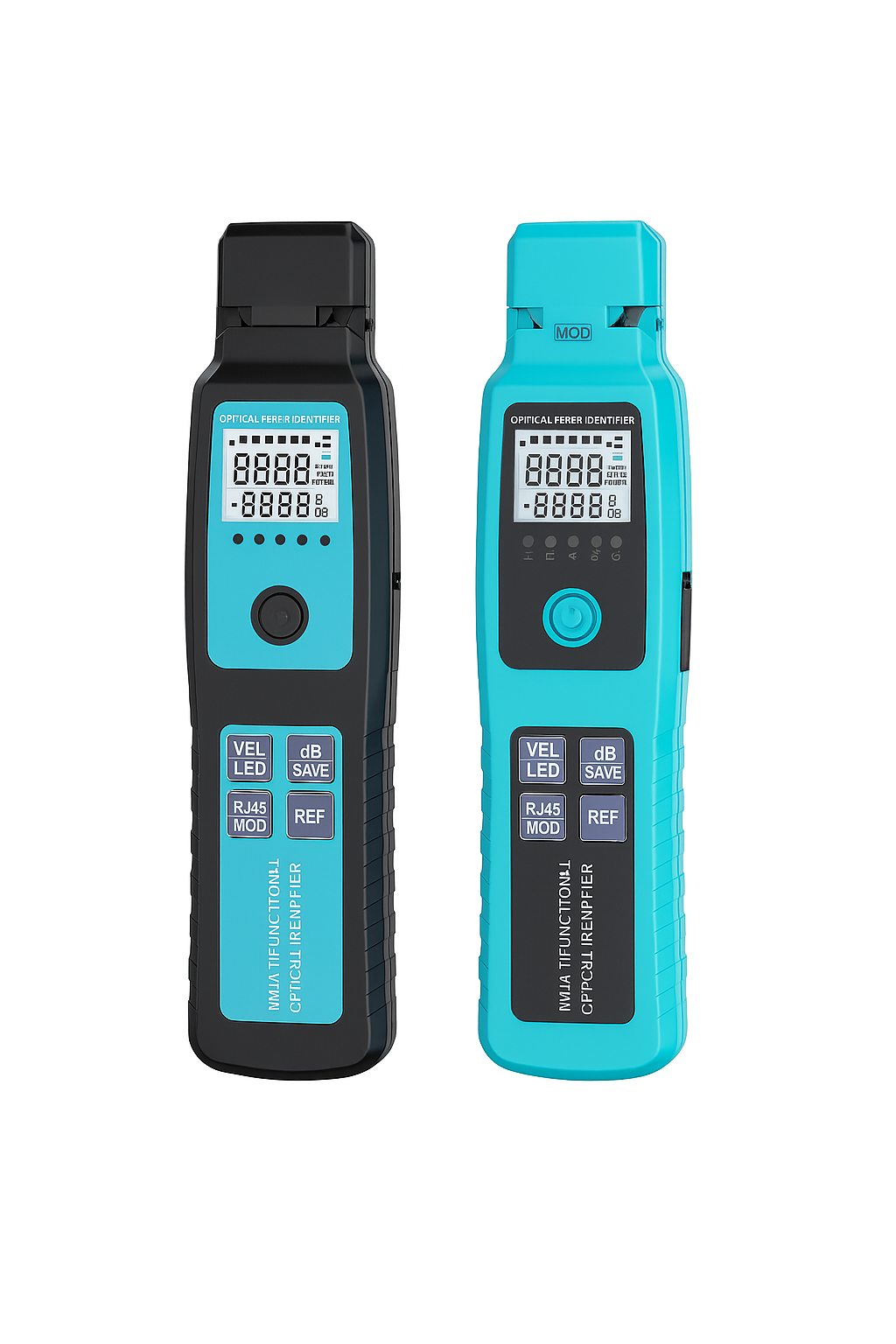

Rechargeable Multifunction Optical Fiber Identifier

The Rechargeable Multifunction Optical Fiber Identifier is a professional-grade tool designed for technicians who need fast, accurate, and non-intrusive fiber testing. With multiple essential functions integrated into a single device, it identifies live fibers, detects optical signals, measures optical power, and performs visual fault detection — all without disrupting active service.

Built with a durable ergonomic shell and equipped with a high-visibility LCD screen, this tool is engineered for reliability in field conditions, from aerial fiber work to underground installations.

🔧 Key Features:

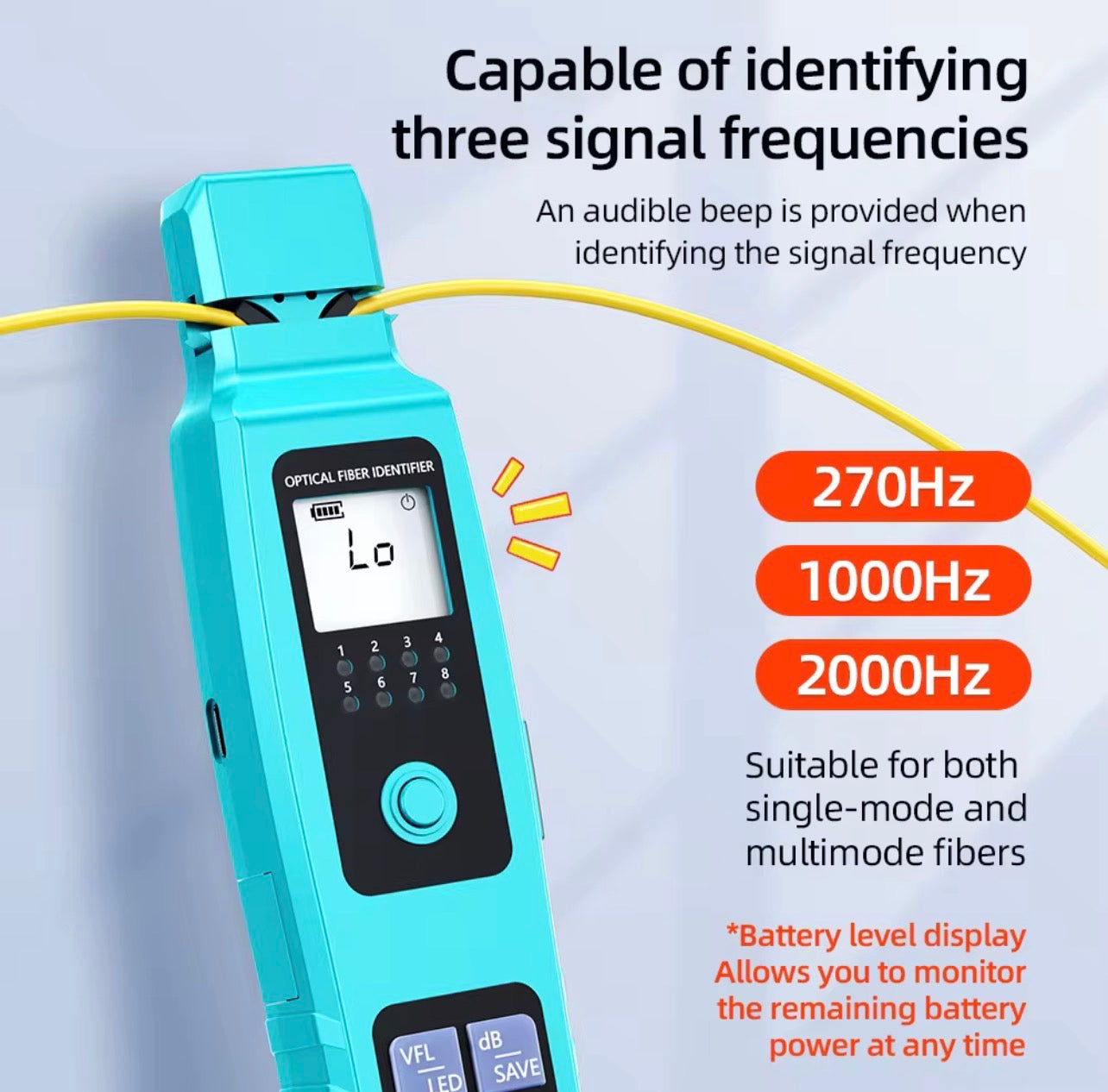

✔ Live Fiber Identifier (LFI)

• Detects traffic direction and optical signal presence
• Identifies active fibers without disconnecting the link

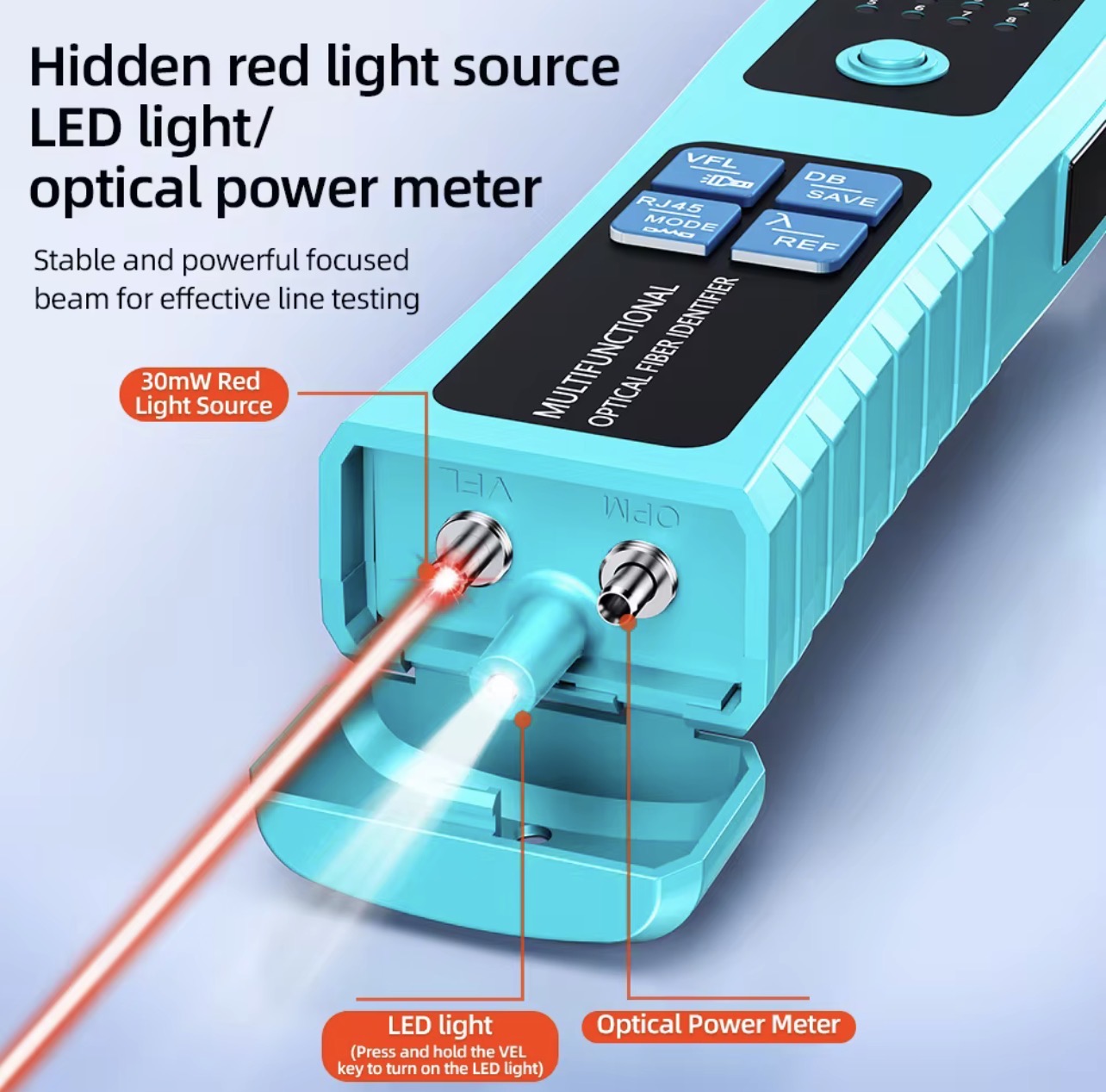

✔ Integrated VFL (Visual Fault Locator)

• High-output red laser for locating breaks, micro-bends, poor splices
• Ideal for drop fiber troubleshooting and OSP/ISP field work

✔ Optical Power Meter Modes

• Measures dBm, mW, and µW
• Supports multiple wavelengths (1310/1490/1550/1625nm depending on model)

✔ Rechargeable Battery System

• No disposable batteries required
• Long-lasting lithium battery for extended field use
• Type-C / USB charging (depending on version)

✔ RJ45 Network Test Mode

• Cable mapping
• Continuity testing
• Ideal for mixed fiber-and-copper job sites

✔ LED Work Light

• Provides illumination for dark handholes, utility boxes, and indoor cabinets

📐 Technical Specifications:

• Wavelength Range: 800–1700 nm (identifier)
• VFL Output Power: 1mW–10mW
• Display: High-contrast digital LCD
• Charging: Rechargeable lithium battery (USB)
• Shell Material: Industrial-grade ABS anti-shock housing
• Functions: LFI / VFL / Power Meter / RJ45 Tester / LED Light
